| FloodStop
for Sink
Prevent Sink related water damage from leaking/ruptured supply lines or overflows:
Sink related leaks are often small and go unnoticed until significant damage is finally discovered. Such a leak will continue to collect under the Sink and then seep between the flooring and sub-flooring. The damage often goes undetected until the floor is visually damp or the smell of mildew is present, at which time the damage and cost to replace is extensive.
|
 |
| FloodStop (FS 3/8-CD) automatically shuts off the water supply to the Sink, whether caused by a ruptured supply line, leaking garbage disposal or an overflow. Powered by AC Adaptor/Transformer or Batteries. Output contacts available, which allow the Controller to connect with Alarm, Home Automation or Auto-Dialer systems if desired. Easily installed in ten minutes. |

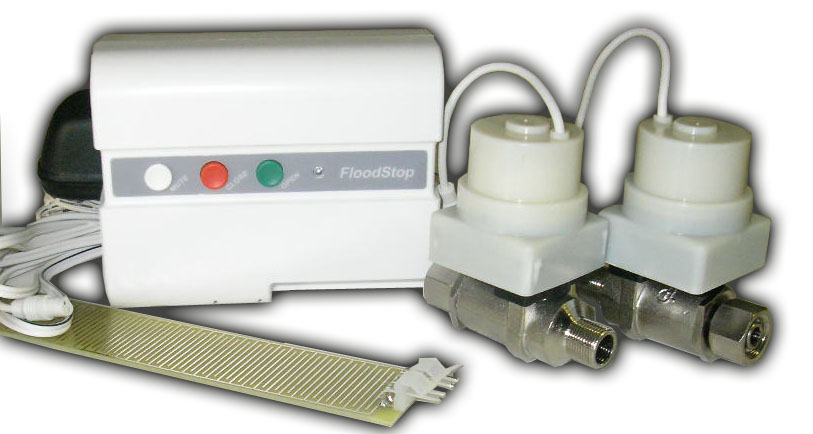

FloodStop (FS 3/8-CD) Components:
• Motorized Ball Valves (Two Valves, 3/8 inch Compression Fitting)
• Control Unit (with Battery Backup 4 X C Size)
• Water/Leak
Sensor (1.25” X 7.5”)
• AC Power Adaptor (or
use 4 X C Batteries as Primary Power Source)
• Output Contact
Wires (2)
|
.jpg) |
How FloodStop (FS 3/8-CD) Works:
• The FloodStop valves are connected to the angle stops and
supply lines
• Water/leak sensor is placed at the base of the fixture (Sink
– Laundry Basin – Tub – etc.)
• Valves stay open until water loss is detected
• Water on sensor closes FloodStop valves and sounds alarm
• Valves stays closed until problem is attended to and system
is reset |
 |
Without FloodStop, Flooding Will Continue:
Unexpected appliance failures cause flooding and water damage, which will continue unabated until the problem is discovered and the water supply is manually shut off. |
With Flood Stop, Property Damage is Avoided:
Water loss from unexpected fixture failures, overflows and supply line ruptures are detected by FloodStop's water/leak sensor, and the water supply is automatically and immediately shut off. |
|
